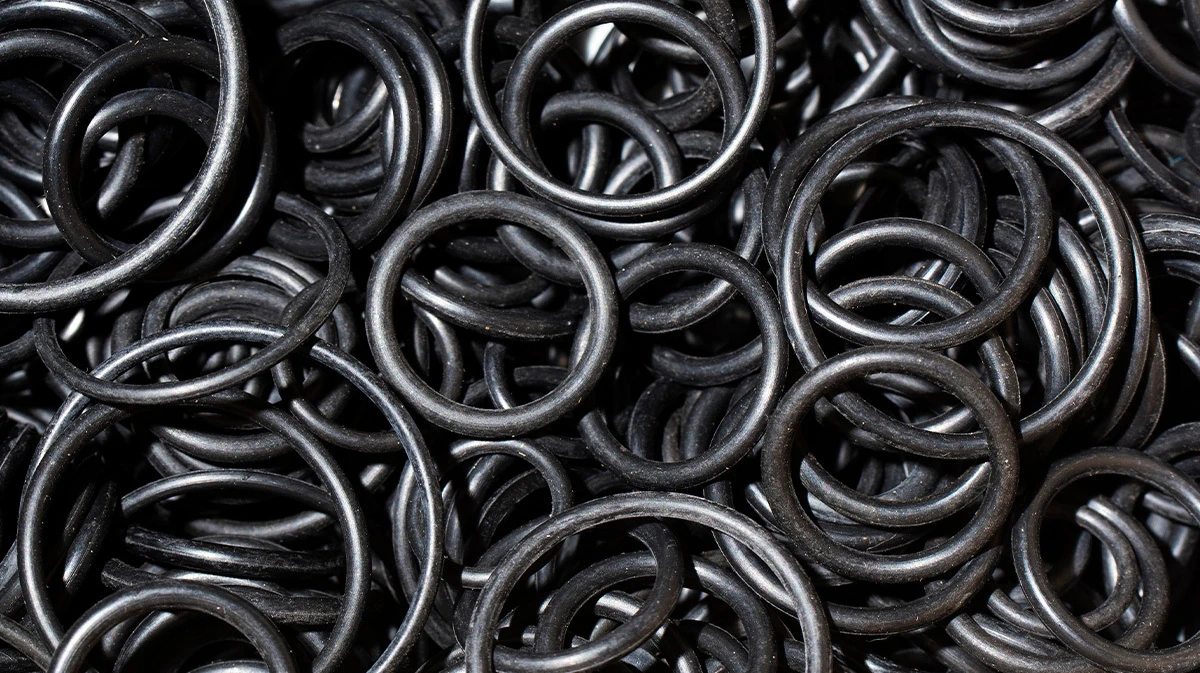

From automotive to aerospace to industrial equipment, O-rings are essential components in a vast range of applications. But don’t let their simple appearance fool you: These elastomer rings play a crucial role in sealing systems by keeping pressurized liquids or gases from escaping.

Not all O-rings are created equal, however. Several factors impact their performance, durability and ability to function effectively in challenging environments.

This article explains what distinguishes one O-ring from another, to help you make the best choice. We’ll explore four key technical elements that differentiate O-rings and may have a direct impact on their effectiveness.

250528 Blog 1640x772 3 1

That’s right—there’s more than one kind of rubber. And when it comes to selecting an O-ring, the type of elastomer is probably the most important factor. Different materials such as nitrile (NBR), ethylene propylene diene monomer (EPDM), fluorocarbon (FKM) and silicone possess unique properties in terms of resistance to temperature, chemicals, compression and abrasion. To ensure the integrity of a seal, the O-ring material must be chemically and physically compatible with the operating environment.

  • Nitrile (NBR): resistant to oils and fuels, but sensitive to ozone and UV. Applications: Automotive and hydraulic industries.
  • Ethylene-propylene-diene-monomer (EPDM): excellent resistance to atmospheric conditions and high temperatures; ideal for outdoor environments. Used in cooling and drinking water systems.
  • Fluorocarbon (FKM): high resistance to solvents, oils and extreme temperatures (up to 200°C). Commonly used in the chemical and aerospace industries.
  • Silicone: highly flexible at extremely low or high temperatures. Often used in the food and medical industries.

Since each application has specific requirements, it’s crucial to select the appropriate material to ensure compatibility and long-term performance.

Dimensional tolerance refers to the accuracy of a seal’s dimensions; and while it’s a crucial factor in O-ring performance, it’s often overlooked. Tolerances define the acceptable deviations in the manufacture of a seal and directly influence its effectiveness, particularly in high-pressure environments or under extreme conditions.

Even a slight variation in the dimensions of an O-ring can result in leaks or pressure problems, compromising the performance of the entire system. To ensure a perfect fit and optimal performance in complex industrial applications, compliance with tolerances is crucial. It’s important to follow standards such as ISO 3601 or AS568, which specify acceptable tolerances to ensure quality.

Rubber hardness is typically measured on the Shore A scale, which determines the o-ring’s ability to withstand compression and hold a seal under various pressures and temperatures. Elasticity, on the other hand, is essential so that the o-ring can return to its original shape after deformation, ensuring a continuous seal over time.

Choosing the right hardness depends on several factors such as pressure, temperature and the type of liquid used. For example:

  • O-rings that are too hard may not compress sufficiently, resulting in leaks.
  • O-rings that are too soft may collapse under pressure and become ineffective.

High-pressure applications typically require harder o-rings to resist deformation, while low-pressure environments benefit from softer o-rings that offer more flexibility.

Certain industrial applications require O-rings with special surface treatments or coatings to improve their performance. These treatments may support reduced friction, better resistance to atmospheric agents such as ozone and UV, or added protection from chemicals and wear.

Coatings such as PTFE (polytetrafluoroethylene) or dry lubricants are often applied to reduce friction, extend seal life, and boost resistance to extreme environmental conditions. These treatments are especially used in high-abrasion environments or in industries where lubricant contamination is an issue, such as the pharmaceutical or food industries.

Considering these four factors will help you select O-rings that fully satisfy the specific needs of your applications, ensuring a long-lasting seal and improved reliability.
